Easy installed boltless storage shelf with laminated mdf board

Short Description:

The raw material of the rivet shelf is cold rolled steel plate, the cross beam is of the Z type，which does not need bolt tightening, rivet design, one step, free and simple disassembly, beautiful and generous, the layer spacing can be adjusted at 3.75cm spacing, the rivet shelf is designed for 3、4 or 5 layers, and each layer can bear up to 100 KG. The laminate of our rivet shelf is divided into wood and iron plate. The next introduction is the riveting shelf with wooden board. It has two different types of holes, namely internal control type and external outer hole type. The rivets are divided into two types: straight legs and docking legs, and the classic colors are white and black. Other colors can be customizable.

Send email to us

Product Detail

Product Tags

Details

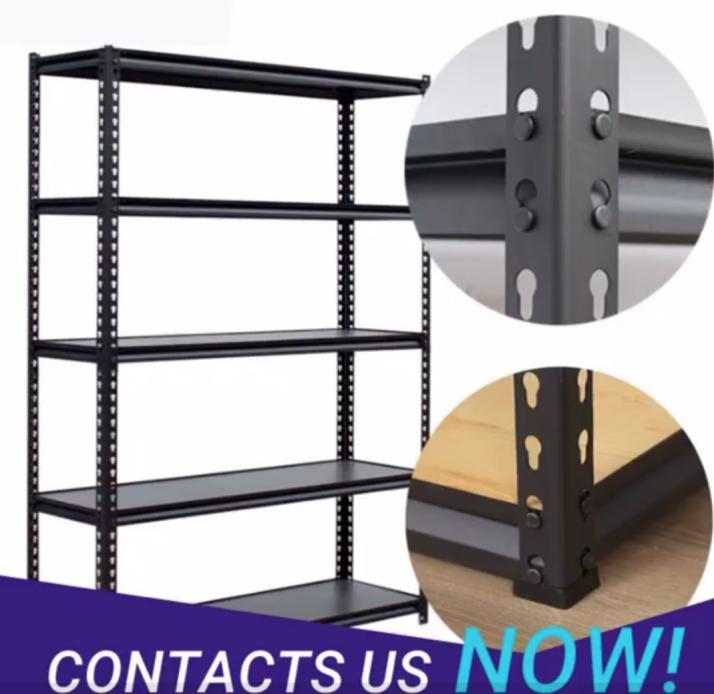

The shelf is durable as the raw material is selected carefully. The shelf can be assembled directly without tools as the gourd-like design. The height can be adjusted freely. The connection of beams and upright makes the whole shelf steadier and firmer. The shelf board can be assembled directly. Bottom rubber is added at the bottom of the shelf which can protect the floor and increase the stability. After acid pickling and phosphorating treatment, high temperature electrostatic power spraying treatment makes the surface elegant and anti-rusted. The shelf can load all kinds of items to make good use of space.

Size	Length	Width	Height (Outer hole)	Height (Inner hole)	Layer
ZD-M8030	800mm	300mm	1500mm	1830mm	4 layer
ZD-M8040	800mm	400mm	1500mm	1830m	4 layer
ZD-M9030	900mm	300mm	1500mm	1830mm	4 layer
ZD-M9040	900mm	400mm	1500mm	1830mm	4 layer
ZD-M10030	1000mm	300mm	1980mm	1830mm	5 layer
ZD-M10040	1000mm	400mm	1980mm	1830mm	5 layer
ZD-M12030	1200mm	300mm	1980mm	1830mm	5 layer
ZD-M12040	1200mm	400mm	1980mm	1830mm	5 layer
ZD-M12050	1200mm	500mm	1980mm	1830mm	5 layer
ZD-M15050	1500mm	500mm	1980mm	1830mm	5 layer

Application

1、The shelf is durable as the raw material is selected carefully.
2、The shelf can be assembled directly without tools as the gourd-like design. The height can be adjusted freely.
3、The connection of beams and upright makes the whole shelf more steady and firm.
4、The shelf board can be assembled directly.
5、Bottom rubber is added at the bottom of the shelf which can protect the floor and increase the stability.
6、After acid pickling and phosphorating treatment, high temperature electrostatic power spraying treatment makes the surface elegant and anti-rusted.
7、The shelf can load all kinds of items to make good use of space.
8、Suitable for shopping mall, shop, storage room, garage, study, office, exhibition hall, warehouse, etc.
