Punching Holes Perforated Steel Slotted Angle Iron Metal Bar

Short Description:

Our company’s Angle steel is made of cold bending, strip automatic continuous punching production line, and adopts electrostatic injection technology. It can be used in building structure, mechanical manufacturing, bridge construction, shipbuilding and other fields. Generally, the standard length of angle steel is 3.05 meters or 2.44 meters(10 FT=3.05 meters, 8 FT=2.44 meters, 7FT=2.135 meters). The material of the angle steel can be ordinary carbon steel, low alloy steel and high strength steel. Surface treatment can improve corrosion resistance and aesthetics by spraying and other methods. If you need to purchase angle steel, you need to pay attention to factors such as the specification, size and material of the angle steel, and choose the appropriate product according to actual needs.

Send email to us

Product Detail

Product Description

Product Tags

Application

Angle steel is widely used in shelf making, and its main uses are as follows:
1. Shelf column: Angle steel is often used to make shelf columns. Because of its high strength, durability, and ease of machining, angle steel is an ideal choice for shelf posts.
2. Shelf beams: Angle steel can also be used to make shelf beams. Using angle steel as the shelf beam can increase the load-bearing capacity of the shelf and improve the stability of the shelf.
3. Shelf reinforcement: Angle steel can also be used to make shelf reinforcements to enhance the stability and load-bearing capacity of the shelves.
4. Stacker crane arm: Angle steel can also be used in the production of stacker crane arm to improve the working efficiency and safety of the stacker crane.
5. Others: Angle steel can also be used to make cargo boxes, shelf bases, etc.
When purchasing angle steel, it is necessary to determine the type and quantity of the material according to the required specifications, size and quantity, and choose an angle steel supplier with reliable quality and reasonable price.

Product Introduction

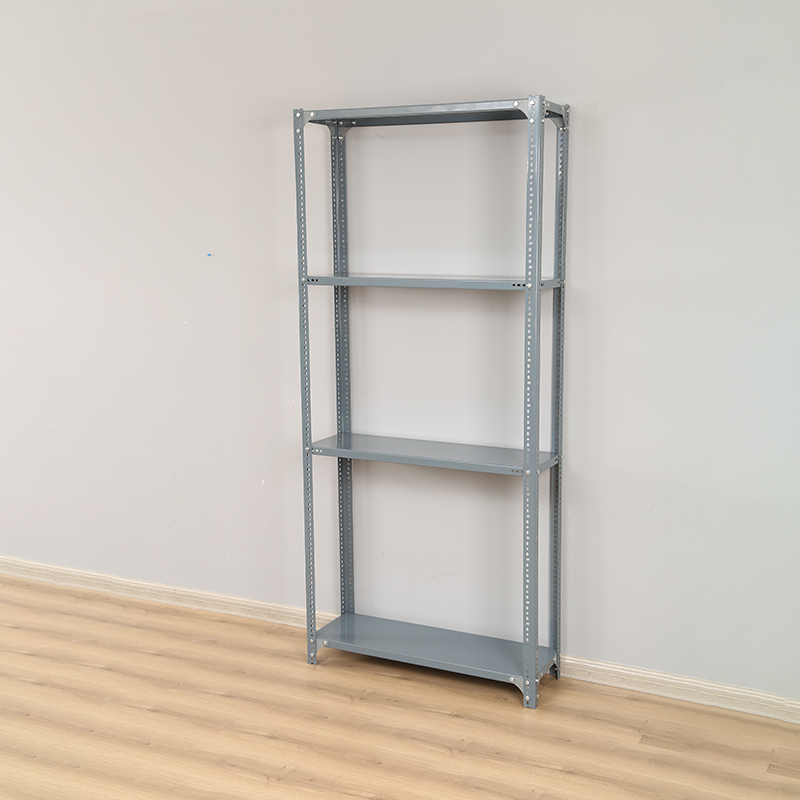

Angle racks (also called angle iron racks or steel sheving units) are light-duty storage solutions made of steel slotted angles and iron boards,designed for industrial, commercial, and workshop use. We provide customized and space-efficient storage for different load capacities,tools, equipment and materials.

The requirements of customized products:
Customers need to provide the details as follows
1)Width mm, thickness, length, and trunccstion
2)The shape of hole
3)Order quantity
4)The colors according to international standard color card RAL.

Feature

1) Angle racks are be adjusted and assemlyed freely by your demands.
2) Our products are made of high-quality cold-rolled steel Q235.
3) Angle racks are fixed by nuts and corner plate.

Size

Main parts: upright, layer board, accessory which includeds bolts, nut, corner plates and plastic set.

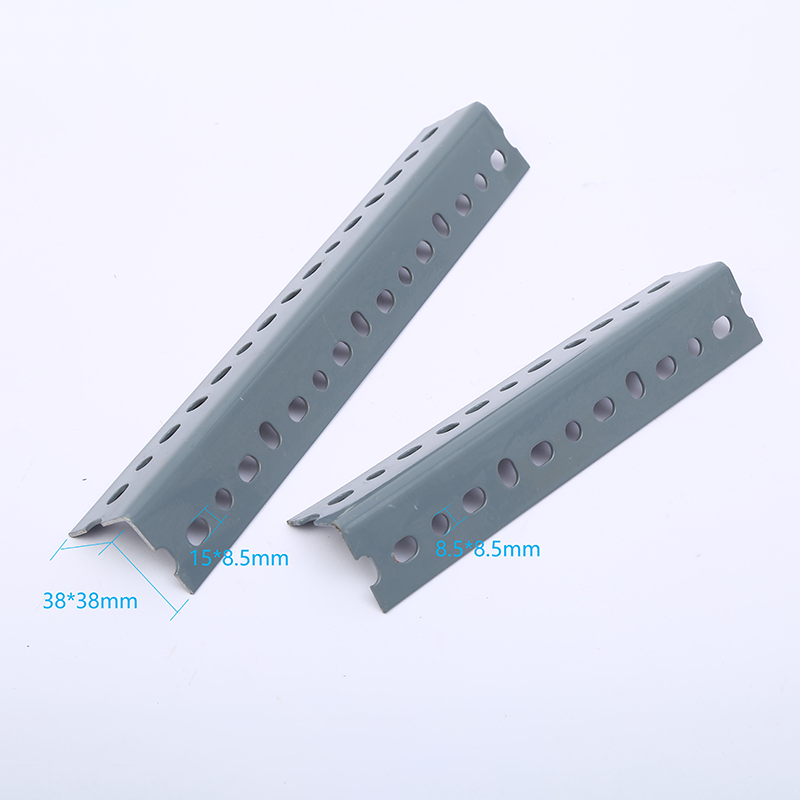

Product	Upright:Steel slotted angle
Raw Material	Smooth and good strength cold rolled steel coil
Type	Equal or unequal (Width on both sides)
Technology	Punching, Perforated, Electrostatic/galvanized spraying, Packing
Thickness	0.8-2.5mm
Width	24-60mm
Length	1800-3100mm.Usually 3m, 2.4m, or cut into as customers’ needs
Color	White/Grey/Red/Black or refer to RAL card
Packing	10pcs per bundle with PP woven cloth
Accessories of each slotted angle	2 corner plates (optional) 6 sets of blots and nuts (optional) 1rubber foot (optional)

Product	Layer board
Size (mm)	Supports (pcs)	Height (mm)	Thickness (mm)
900*300	0	30/38	0.6-1.0
900*400	1	30/38	0.6-1.0
900*450	1	30/38	0.6-1.0
900*500	1	30/38	0.6-1.0
900*600	2	30/38	0.6-1.0

Accessories for assembling the bolted racks

Special sizes or load capacities can be customized.

Application

Market, store, storeroom, garage, study, office, showroom and warehouse etc.

Production process

1) Punching the holes:

https://youtu.be/xN5GJvy2eLc

2) Forming:
3) Cutting：
4) Power coating：
5) Package

Package

1)10/20pcs packed by PP woven cloth.
2)10pcs packed by export mail cartons.

About us

Linyi Zhiding Import And Export Co.,Ltd, with the factory of Linyi City Lanshan District Angle Hardware Co.Ltd, majored in producing the steel slotted angle, boltless shelves, warehouse rack and supermarket shelf, is a comprehensive enterprise of designing, manufacturing, and trading.
The company is equipped with advanced production lines as cold-rolled forming line, automatic and continuous steel strip punching line and electrostatic powder-spraying coating line. Meanwhile, we have a professional team of manufacturing, sales, shipping and after -sales service. The products are widely exported to South-East Asia, Middle East, South America, South Korea, Japan and so on.

Advantage

1) Factory directly selling without middlemen.
2) We can supply serivice that make your container full. If your containers have some space left, we can supply you with other goods. Or we can load the goods which you buy from other factory.
3) We have more 20 years experience of professional production and exporting. You can belive our professionalism. We are familiar with our rack industry and our products, alse we can handle with various difficult problems.

Loading

1) Bulk goods can be packed into pallets and deliveryed to Yiwu warehouse, Guangzhou warehouse or other exporting warehouse.
2) Full container goods is usually loaded into 20GP and the weight should not exceed 28000kgs.
3) Bulk goods can also be loaded with other light goods to fullfill the 40HQ.The steel slotted angle will be put at the bottom of the container and light goods put on the angles.This is the best way to make full use of the container. In this way , the weight of the goods will be not exceed 28000kgs while the container is full.
